KINGrinder | Friendly Cleaning | Interior Adjustment

Interior Adjustment of K1 | K2 | K3 | K5

· Friendly Cleaning
Kingrinder | Interior Adjustment

Clean your grinder and keep the fines residual away. I personally find inner peace when cleaning the grinder.

The interior adjustment design is the easiest model to take apart throughout cleaning.

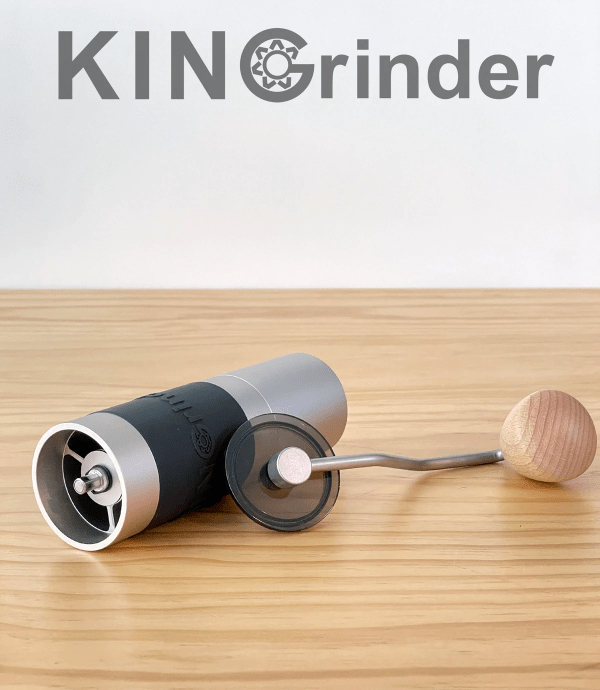

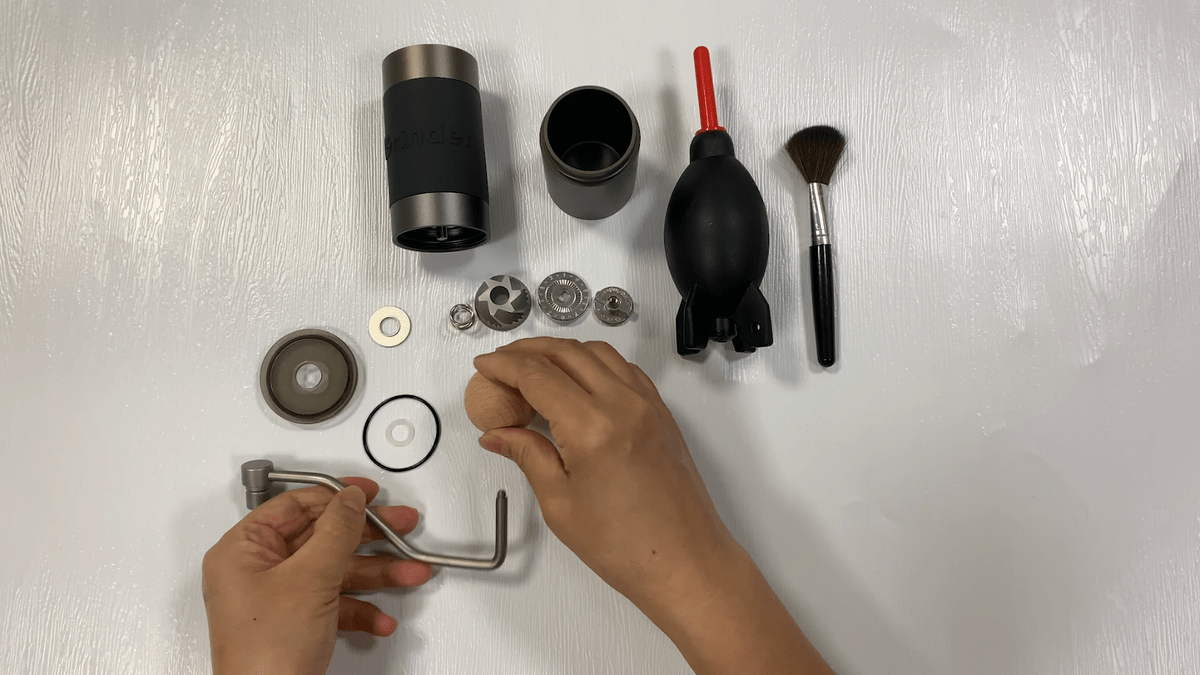

The grinder’s component parts of the interior adjustment design.

Kingrinder | Interior Adjustment

Disassembling your grinder:

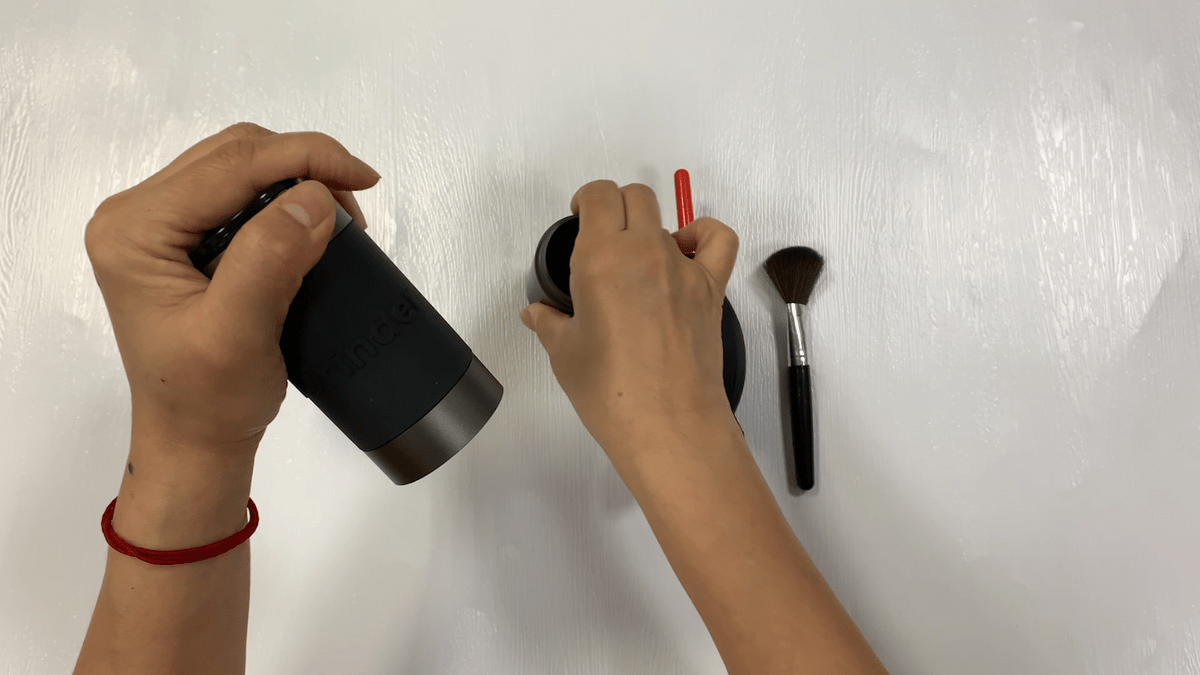

1. Remove the receiver. Hold the handle to prevent rotation.

Kingrinder | Interior Adjustment

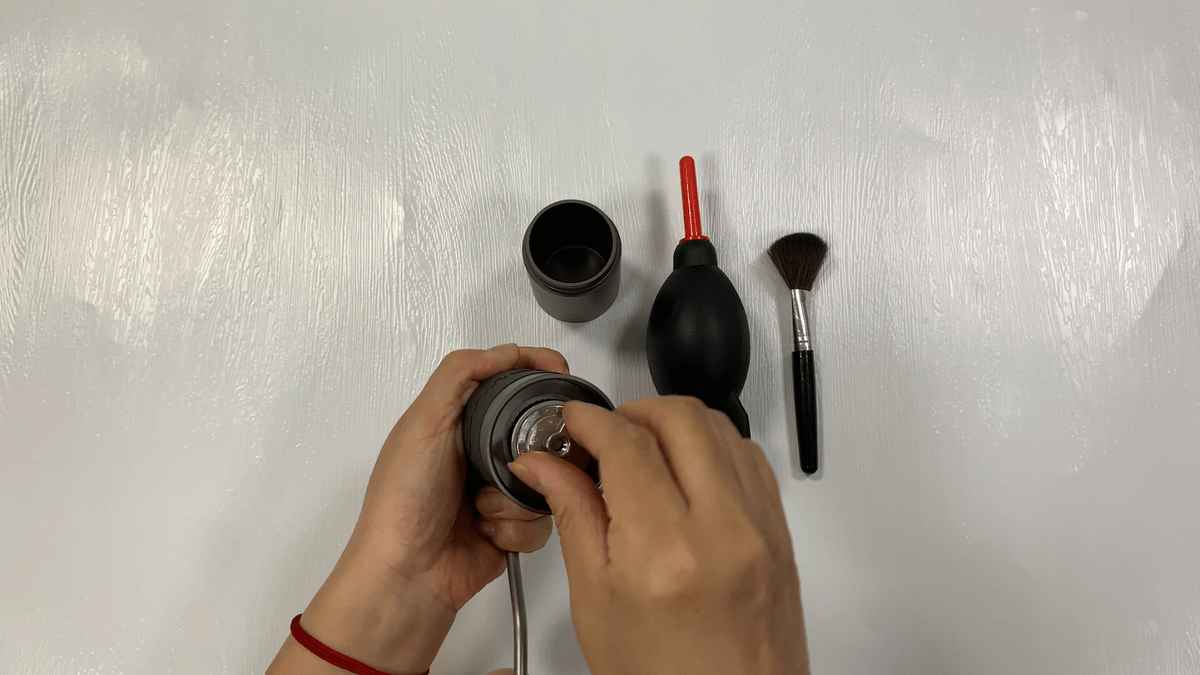

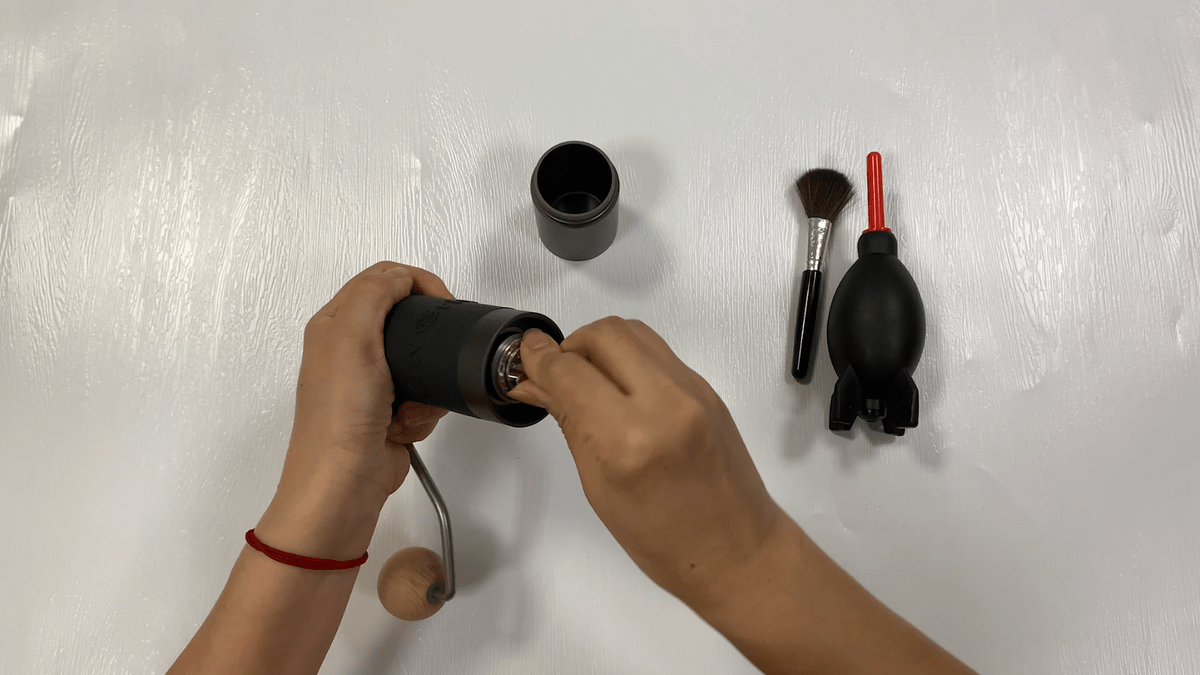

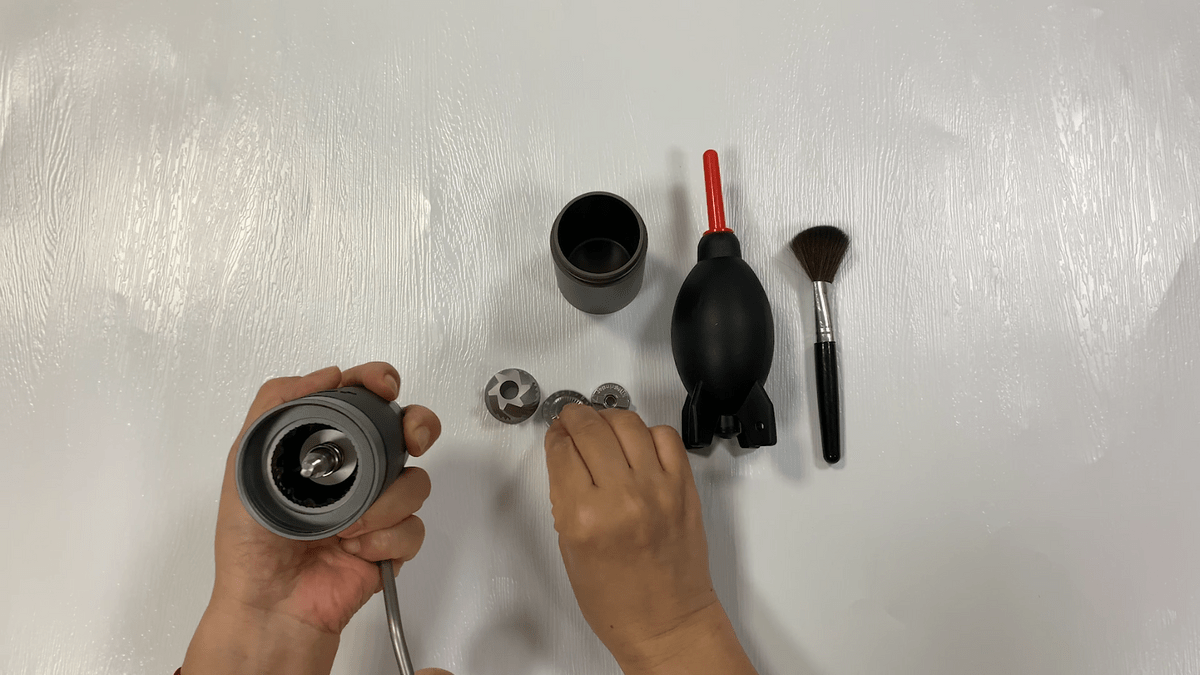

2. Rotate the spin dial anti-clockwise to remove it as well as the numerical dial and the inner burr.

Kingrinder | Interior Adjustment
Kingrinder | Interior Adjustment

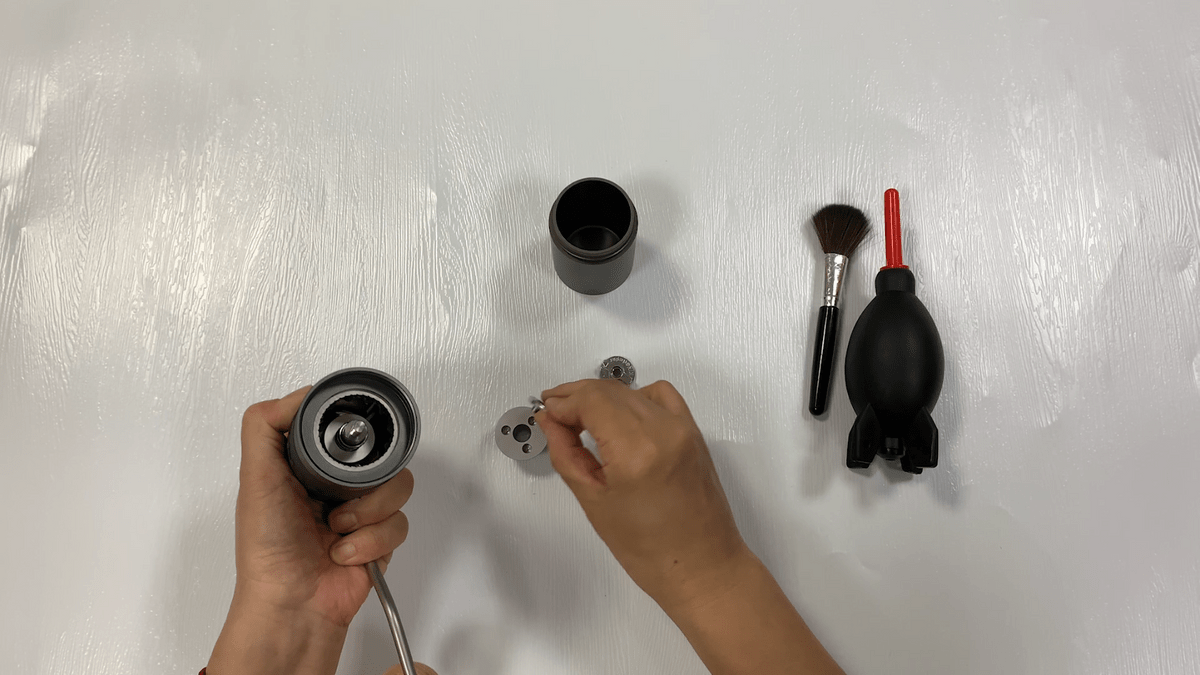

3. Remove the spring and the bearing cover.

Kingrinder | Interior Adjustment

4. Take out the handle and the black O-ring.

Kingrinder | Interior Adjustment

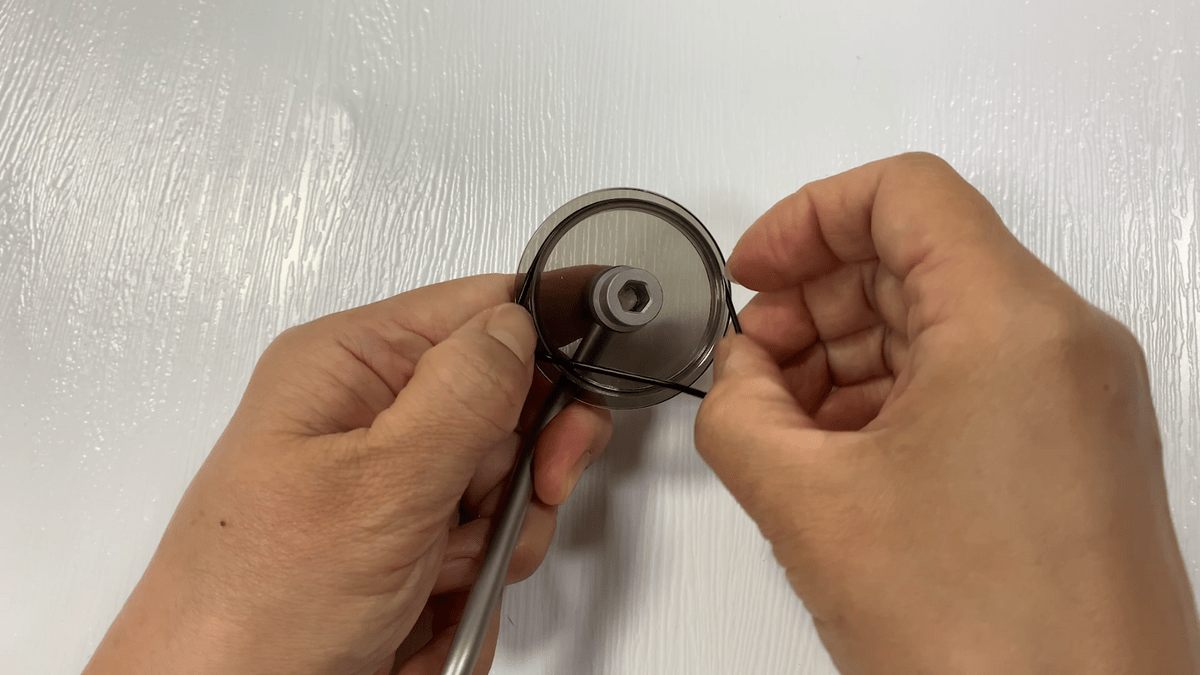

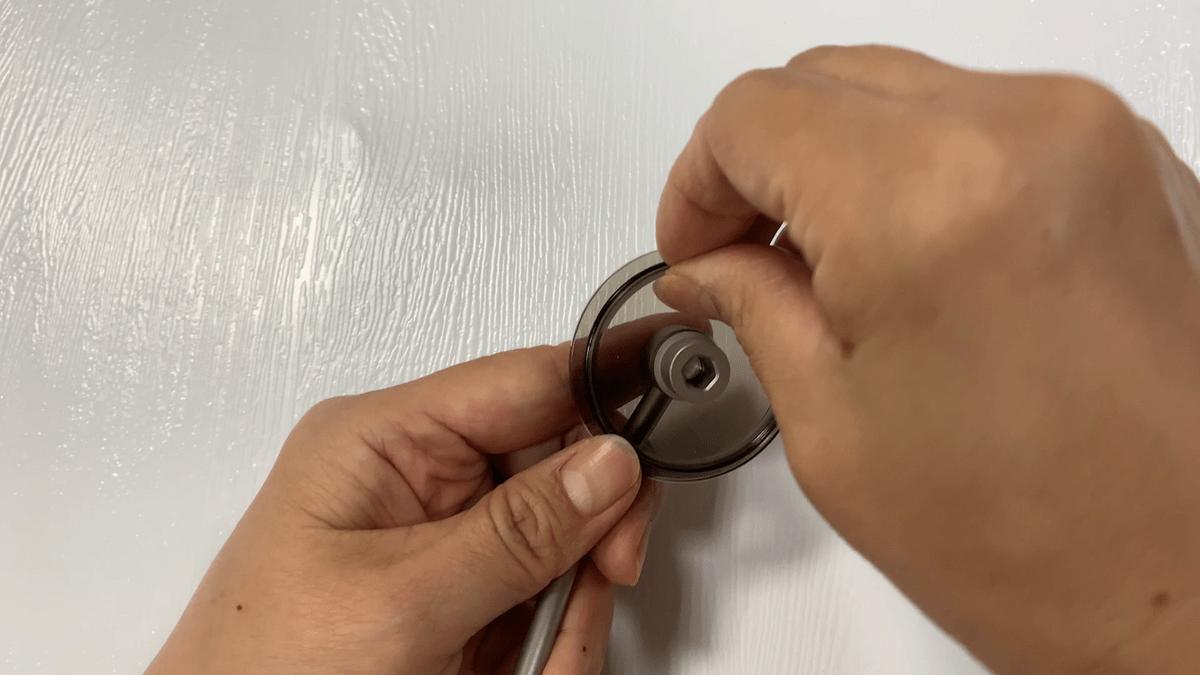

5. Pinch one side of the white O-Ring to remove, take out the PC lid and the ball.

Kingrinder | Interior Adjustment
Kingrinder | Interior Adjustment

Assembling your grinder:

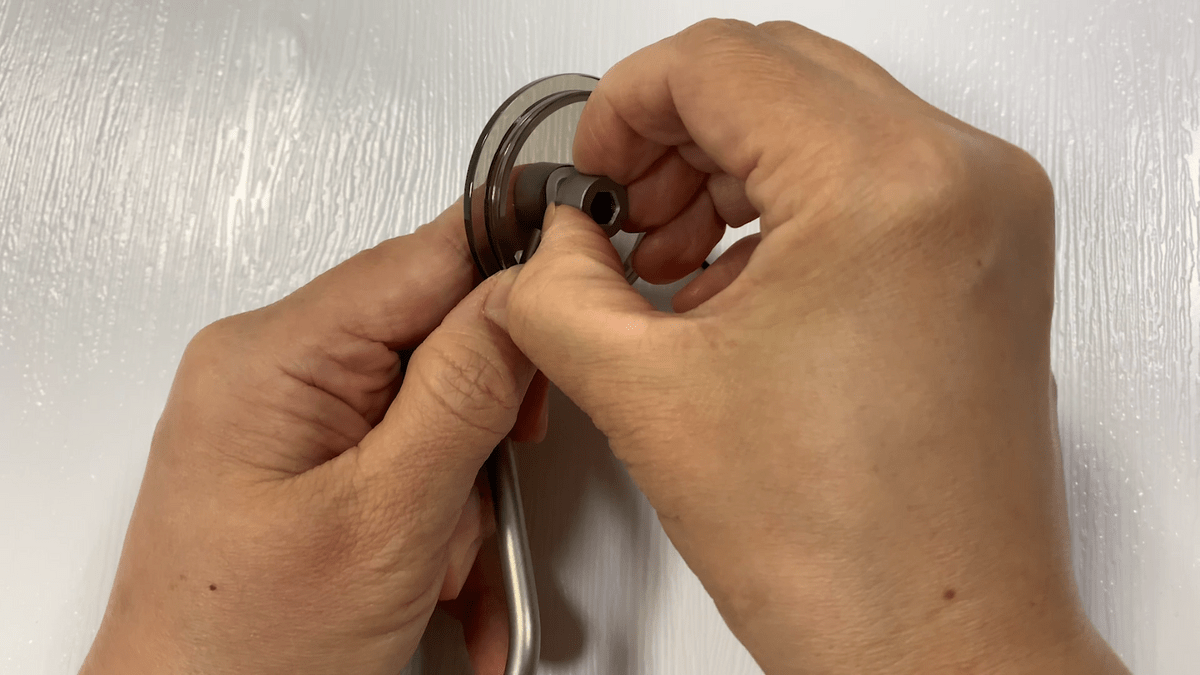

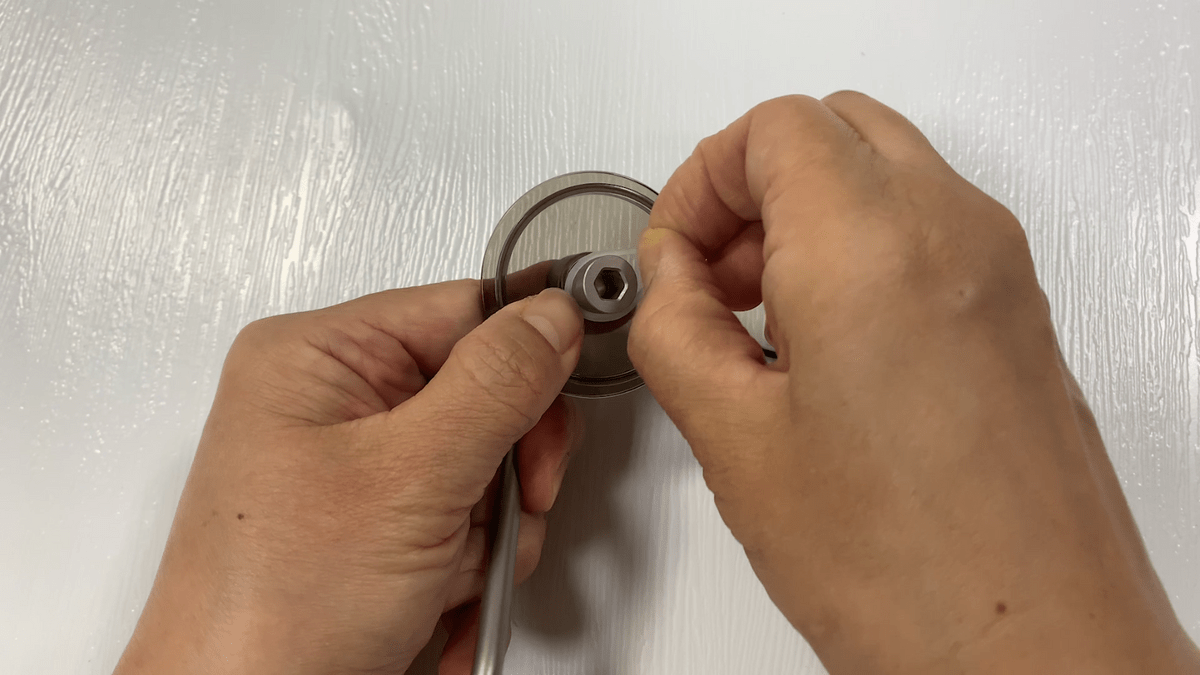

1. Put on the PC Lid, the white O-Ring and the ball.

Kingrinder | Interior Adjustment

2. Put on the black O-Ring into the handle. Holding and connecting the handle with the grinder.

Kingrinder | Interior Adjustment

3. Put on the components in order. The bearing cover and the spring.

Kingrinder | Interior Adjustment

4. Install the inner burr and the numerical dial.

Kingrinder | Interior Adjustment
Kingrinder | Interior Adjustment

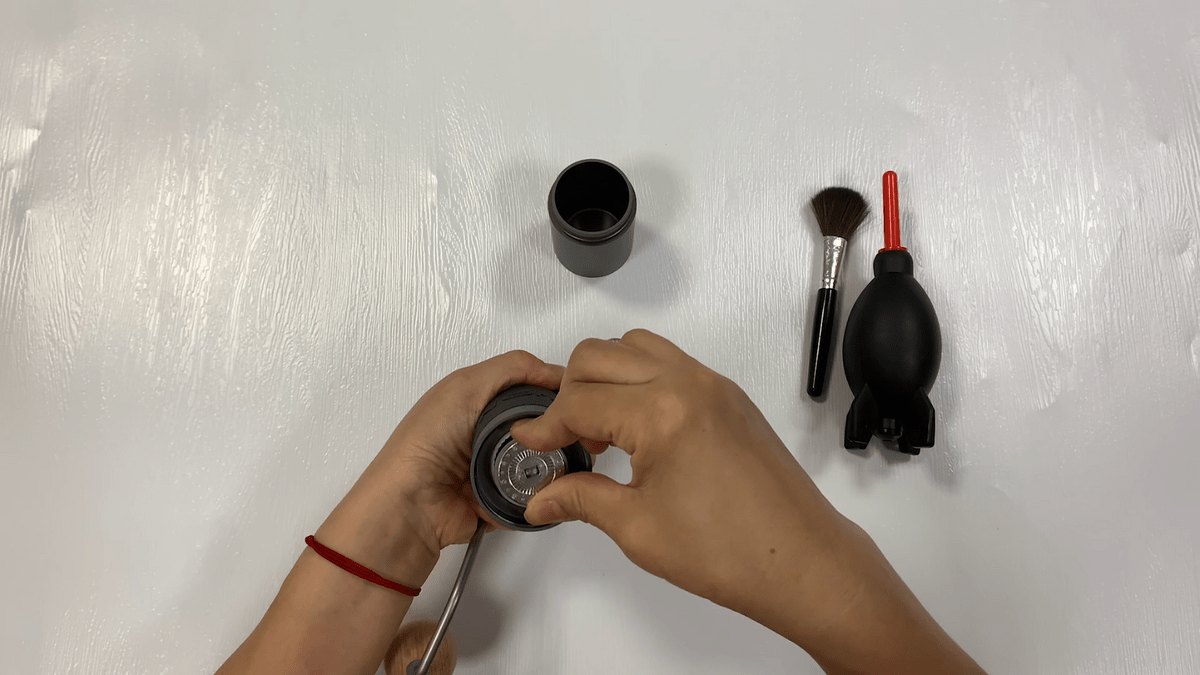

5. Rotate the spin dial clockwise.

Kingrinder | Interior Adjustment
