Exterior Adjustment of K4 | K6

· Friendly Cleaning
Kingrinder | Exterior Adjustment

Clean your grinder and keep the fines residual away.

I found the exterior adjustment design is tricky to take apart throughout cleaning. However, it would be getting better after the practice.

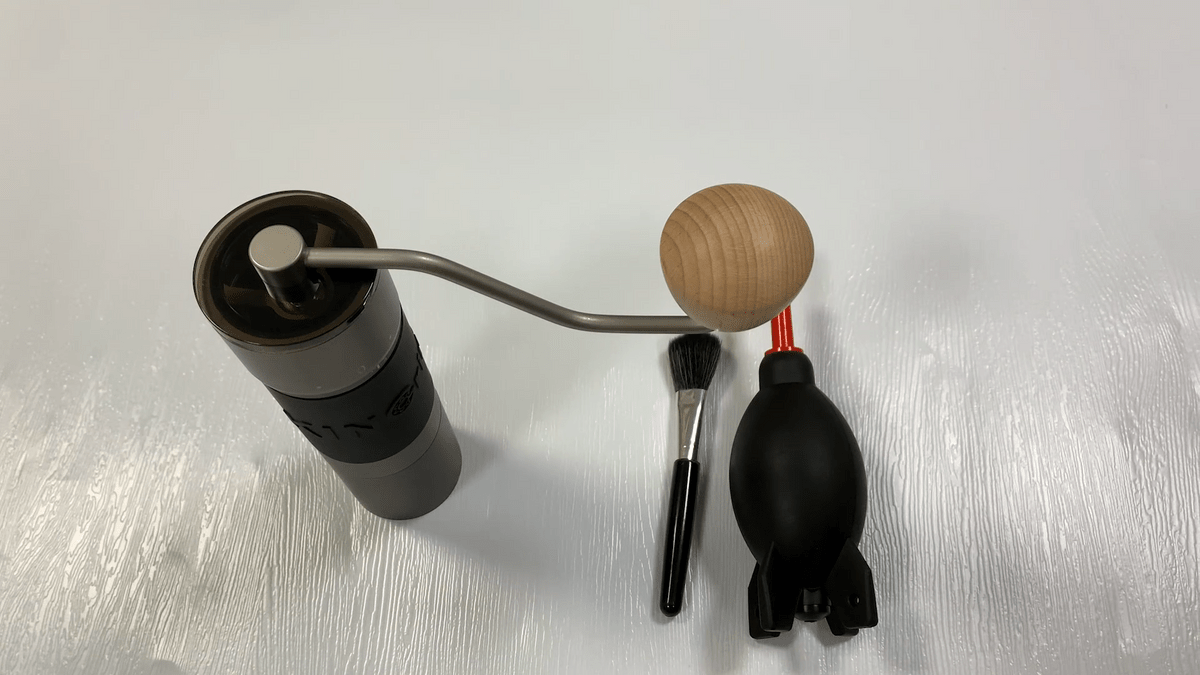

The grinder’s component parts of the exterior adjustment design.

Kingrinder | Exterior Adjustment

Disassembling your grinder:

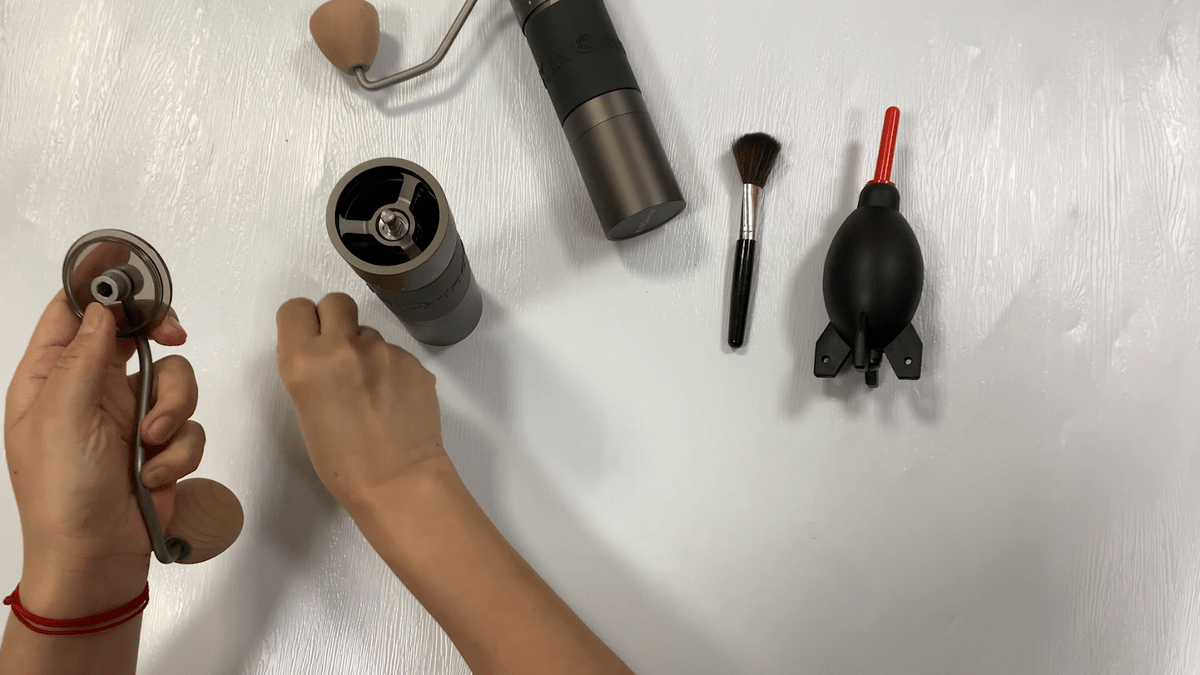

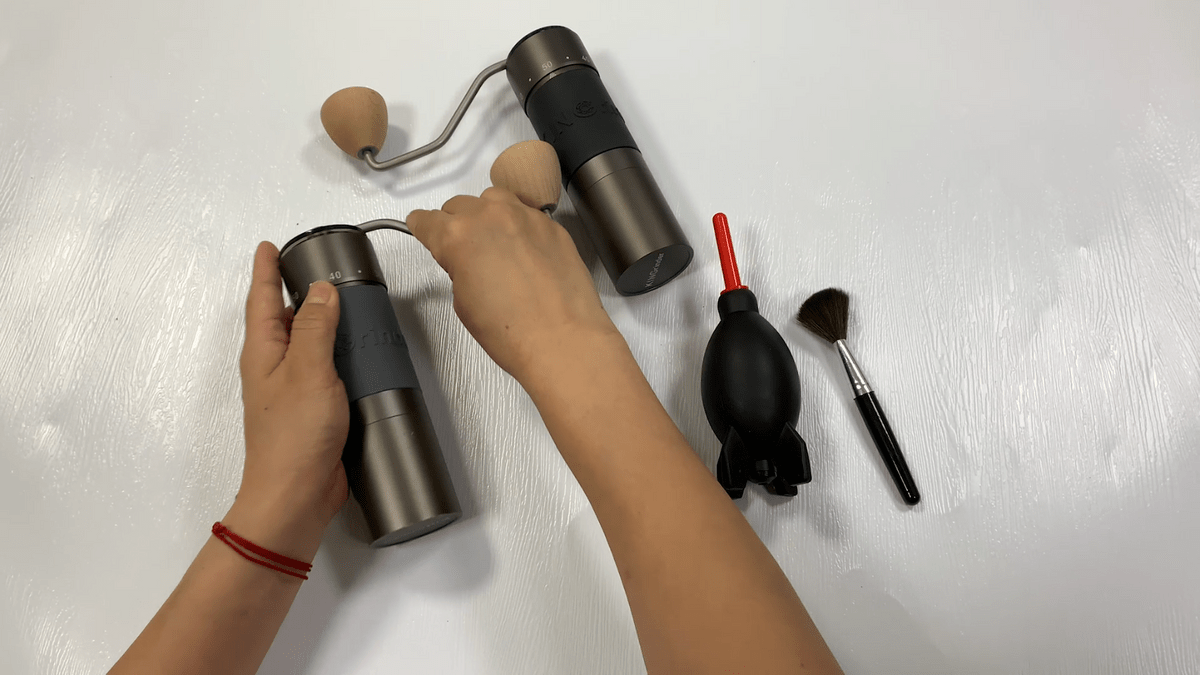

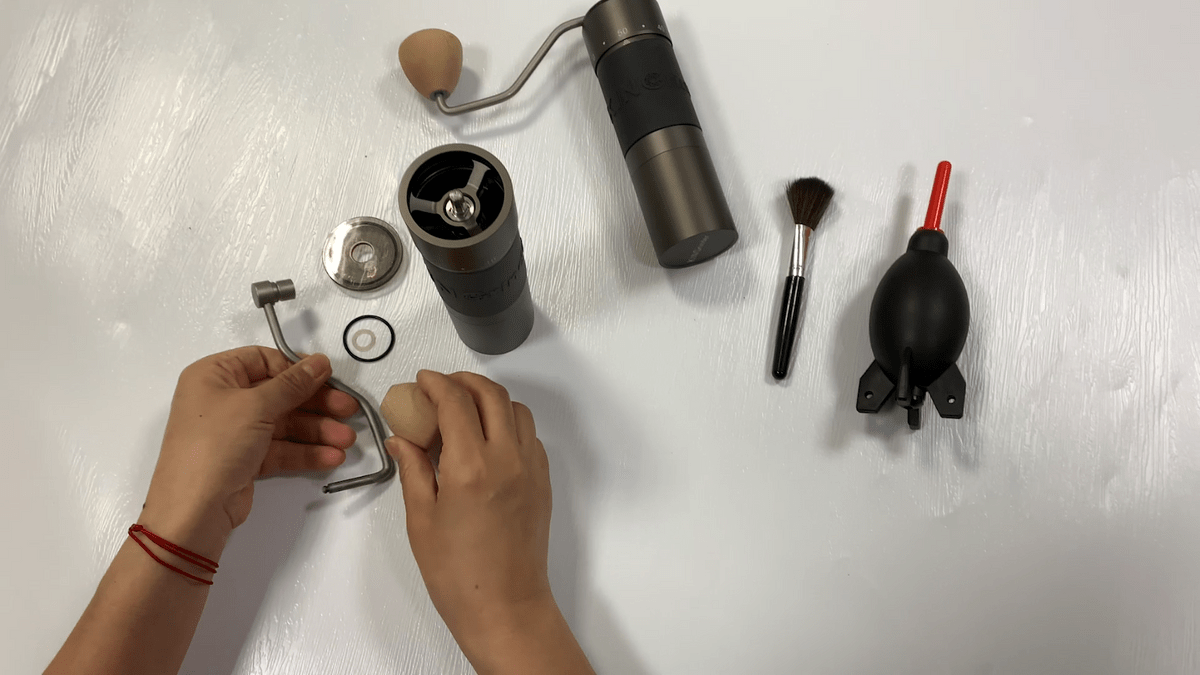

1. Take out the handle and the black O-ring.

Kingrinder | Exterior Adjustment

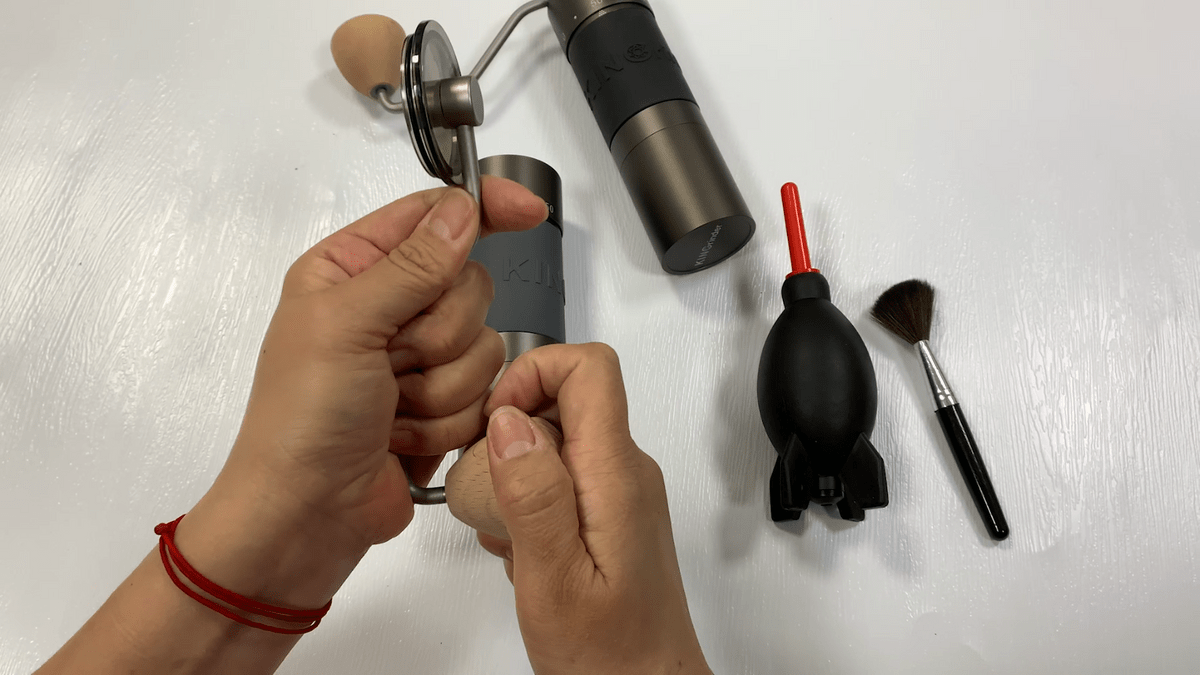

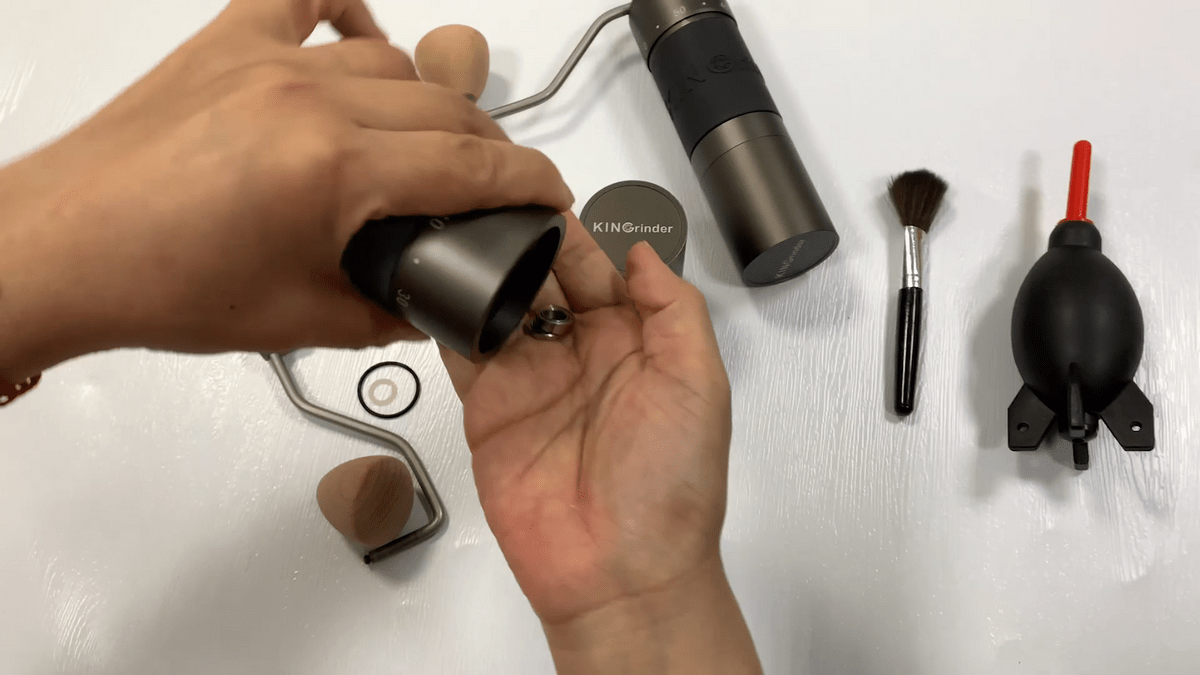

2. Pinch one side of the white O-Ring to remove, take out the PC lid and the ball

Kingrinder | Exterior Adjustment
Kingrinder | Exterior Adjustment

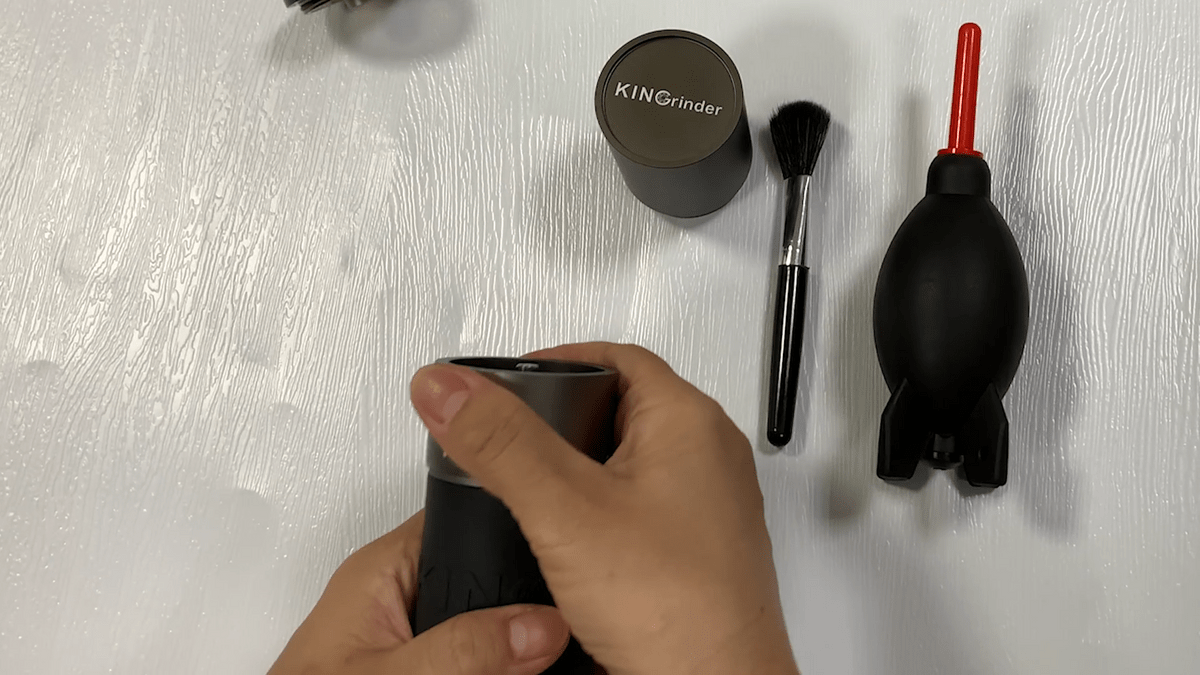

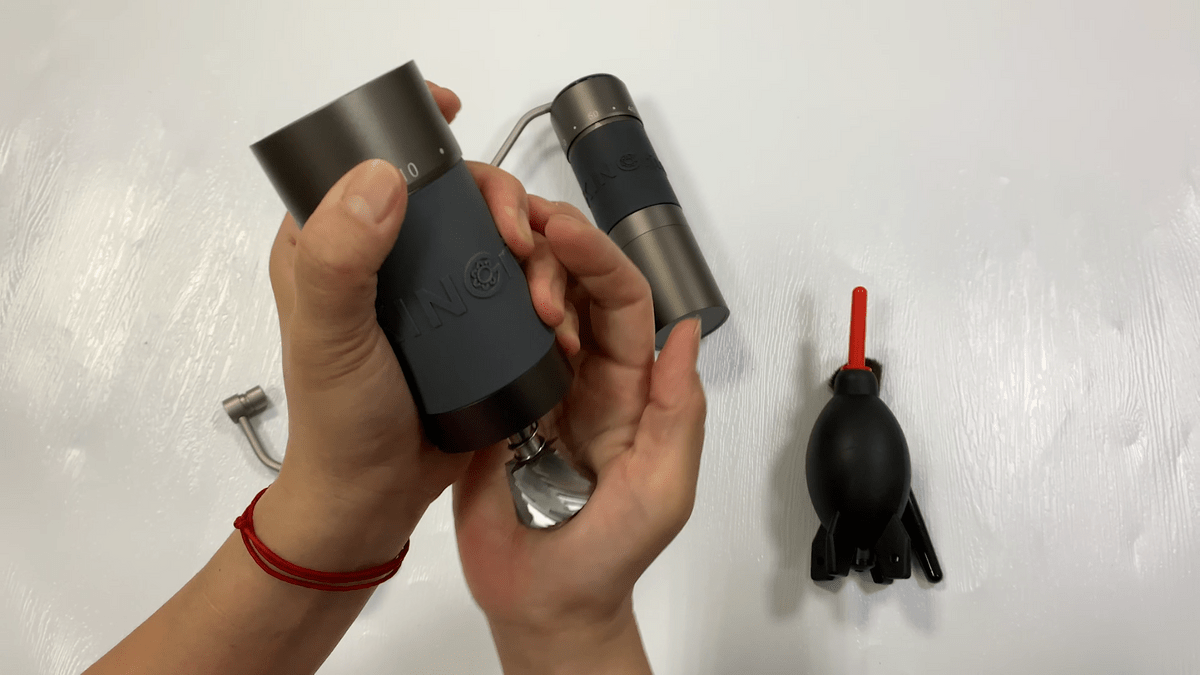

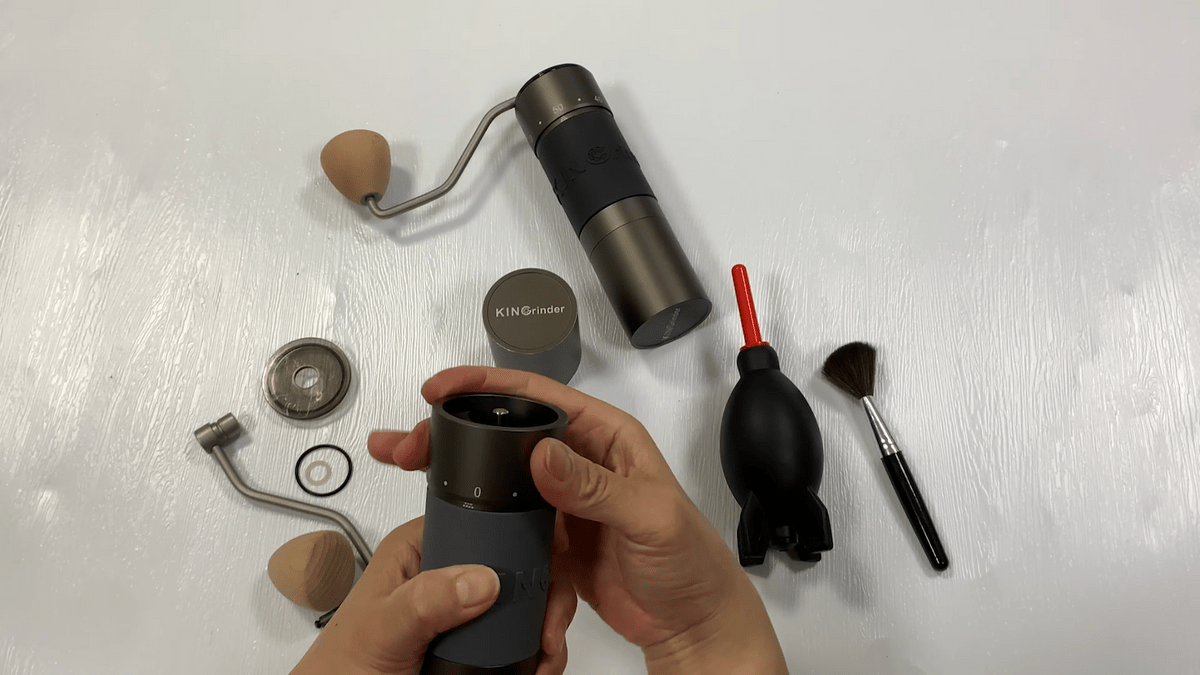

3. Remove the receiver. Rotate the adjustment nut anti-clockwise for a coarser grind.

Kingrinder | Exterior Adjustment

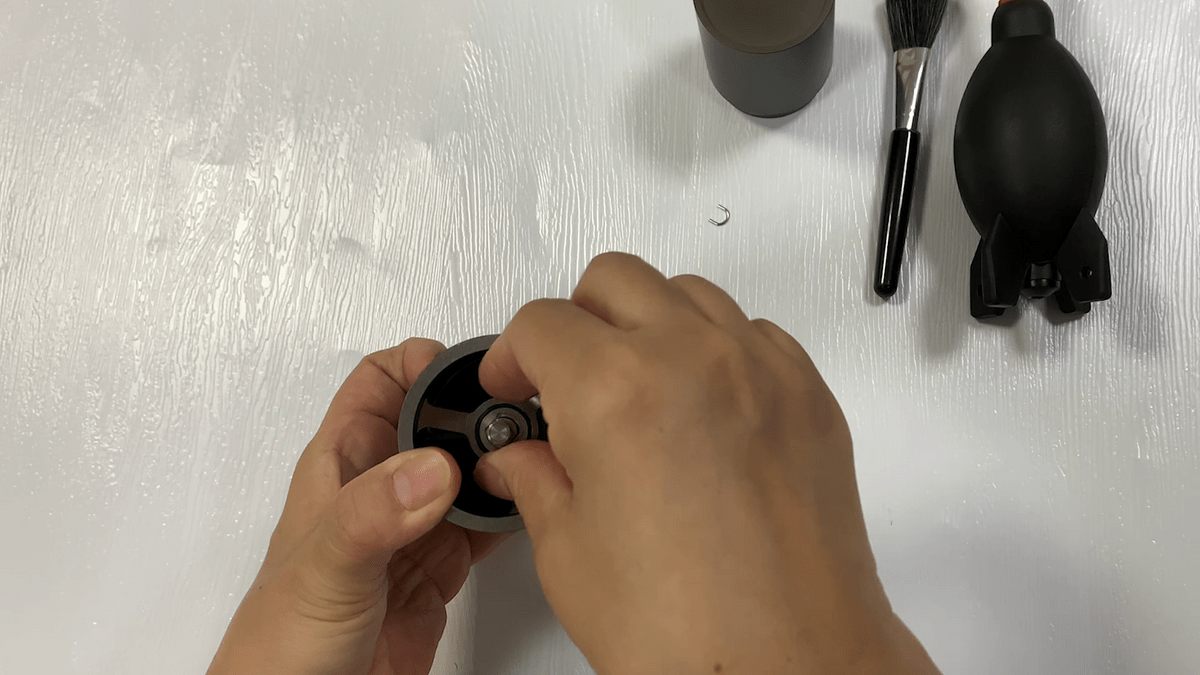

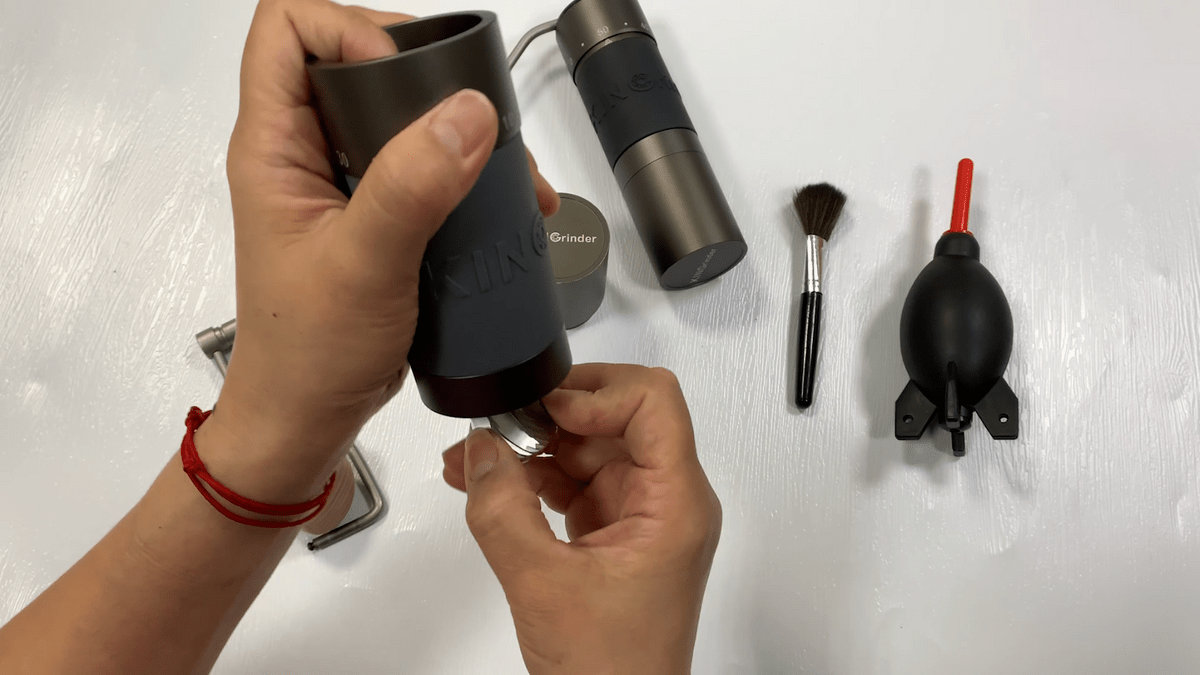

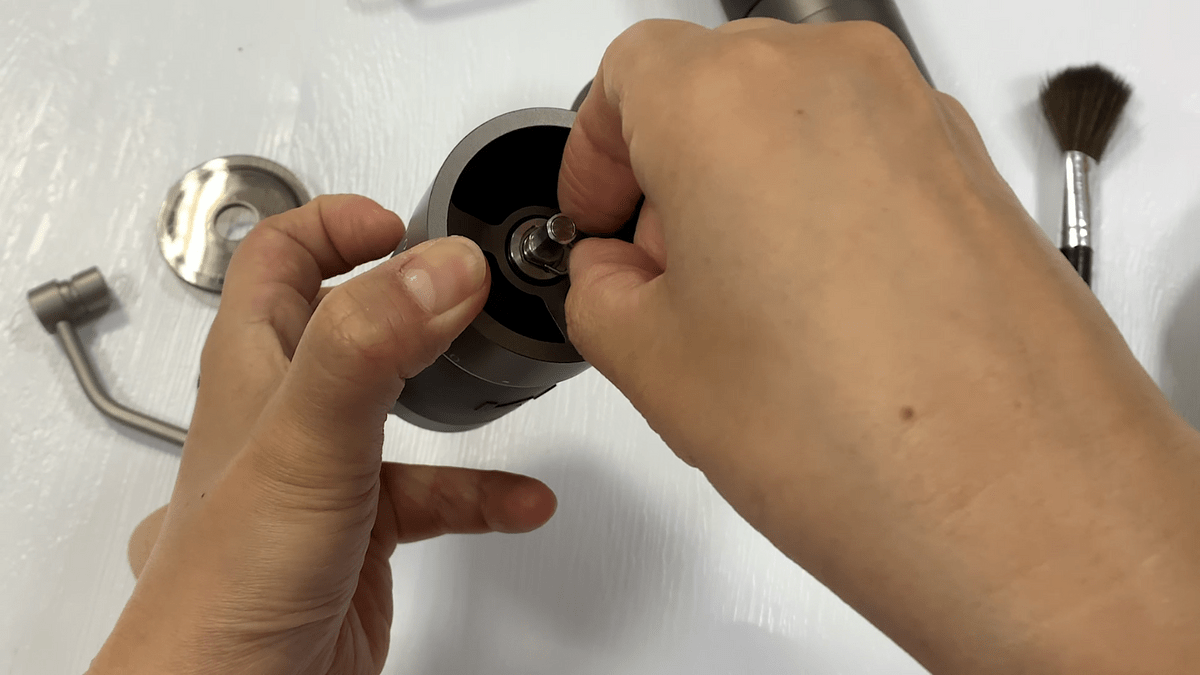

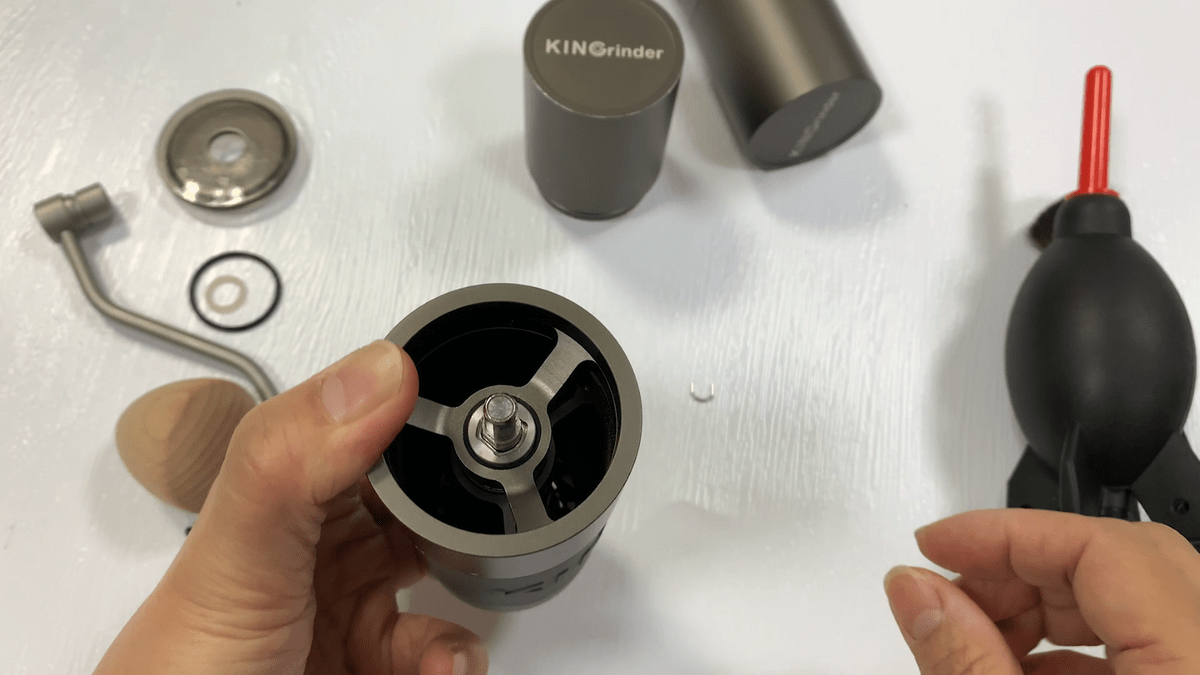

4. Hold down the burr set with a hand and remove the circlip with another hand.

Kingrinder | Exterior Adjustment

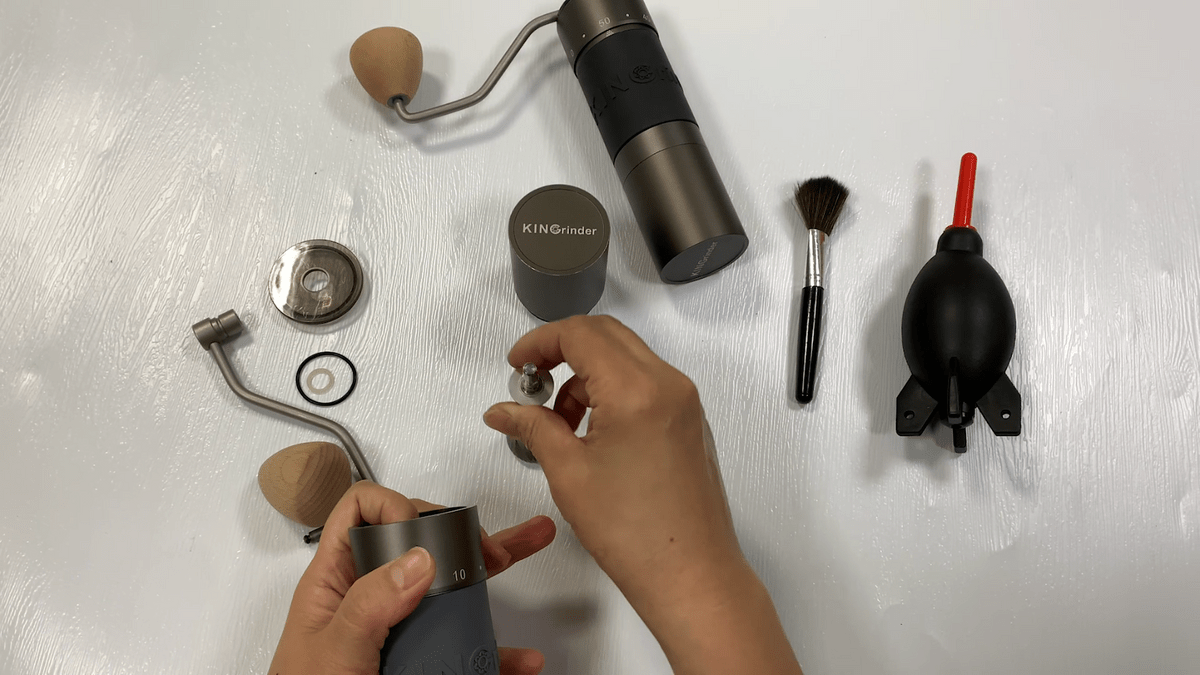

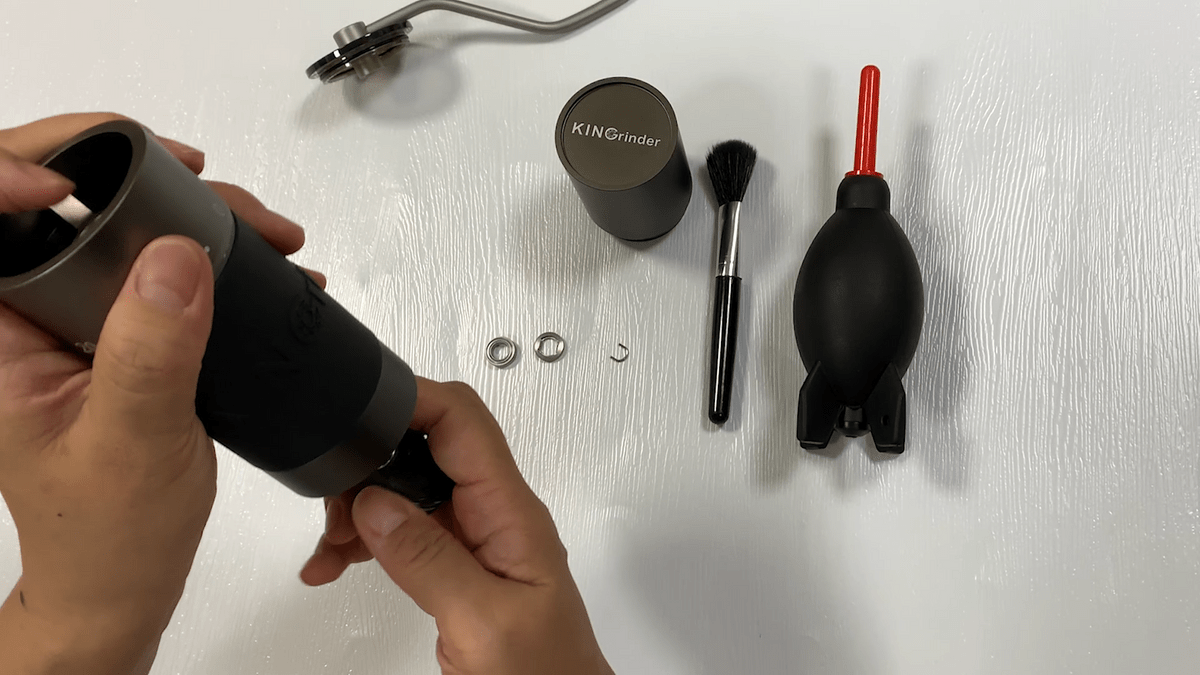

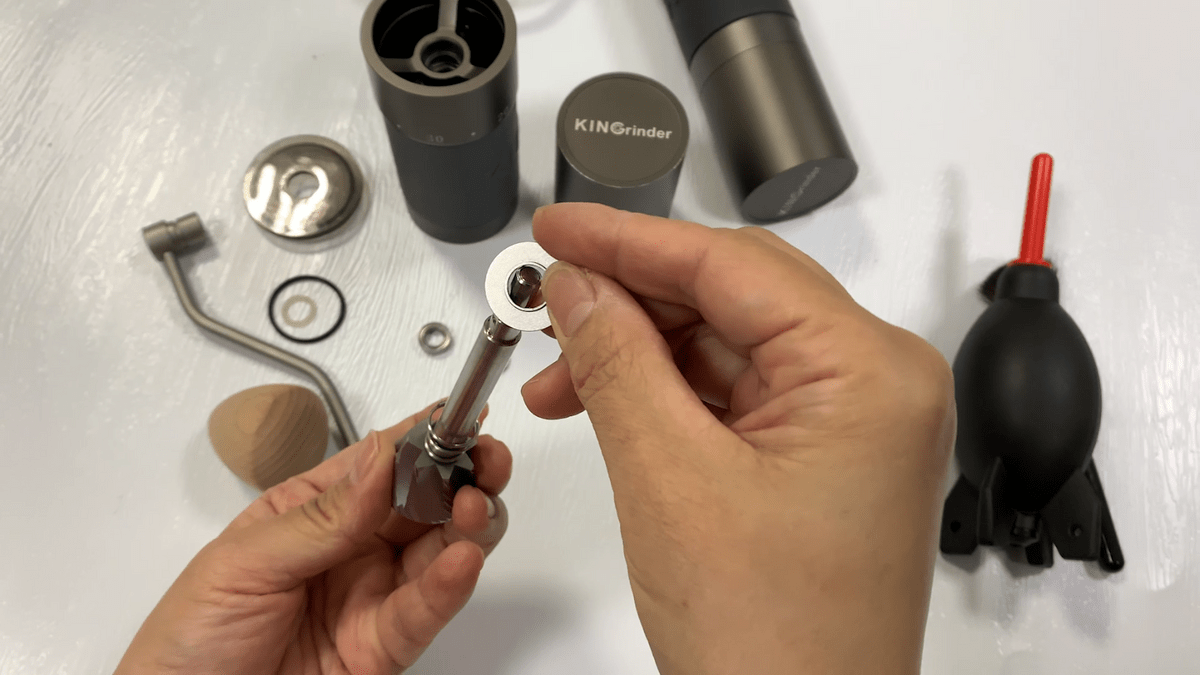

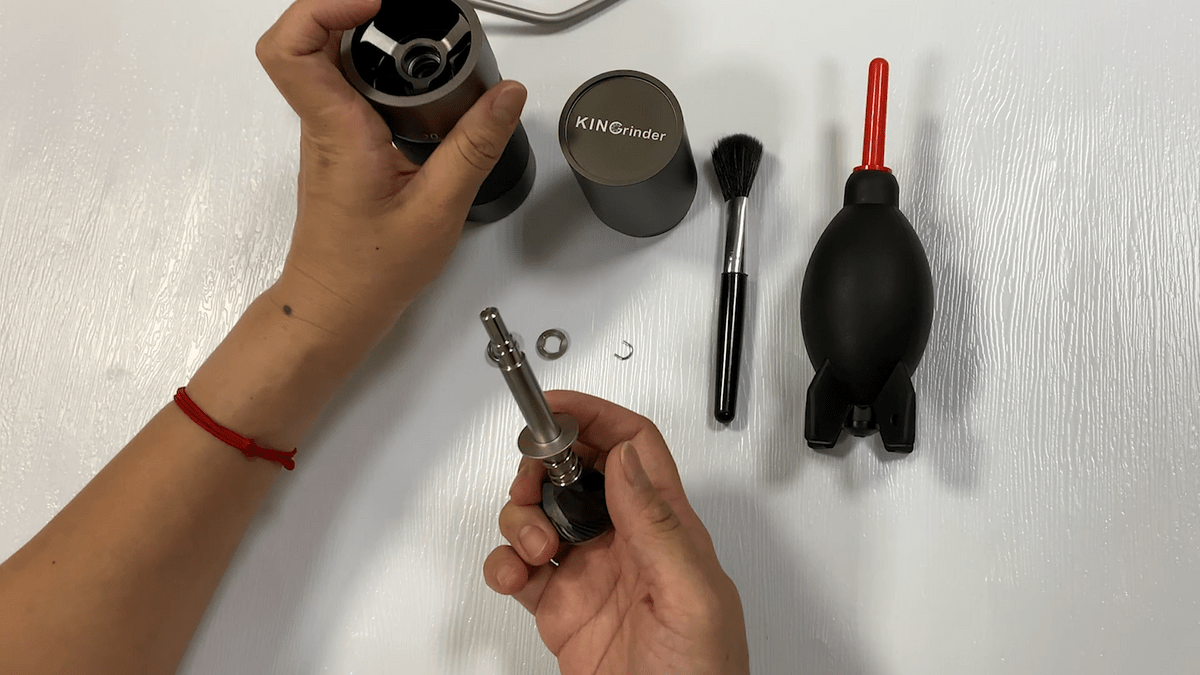

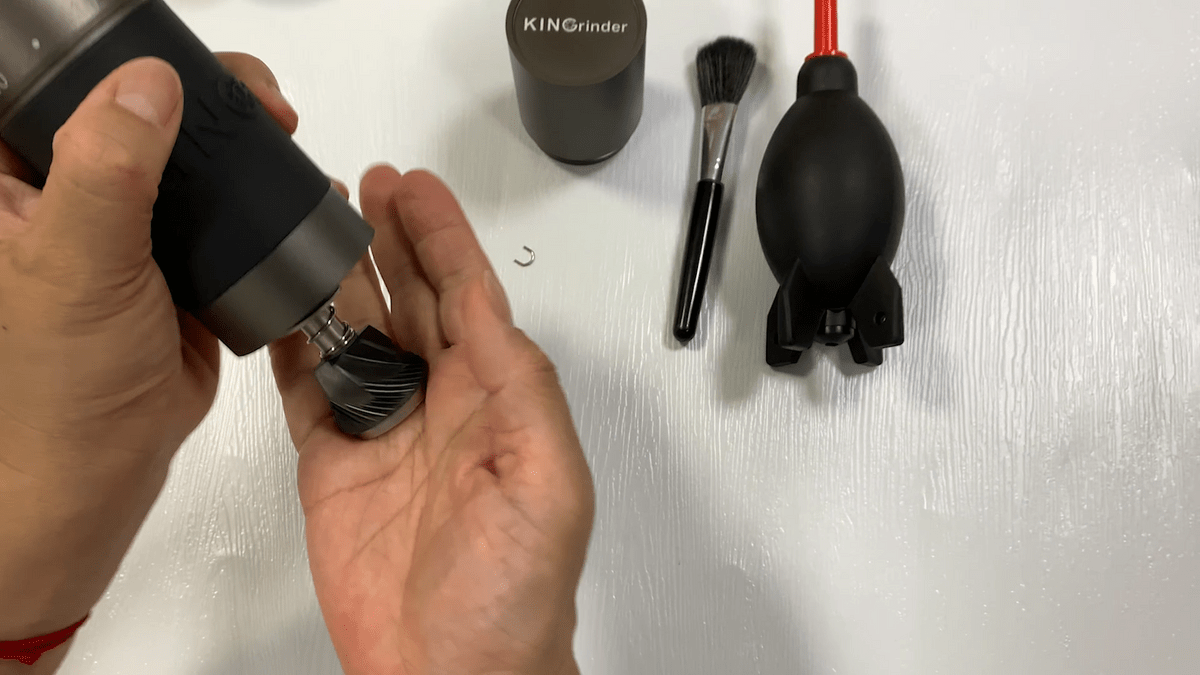

5. Take out the burr set (attached with the central shaft) and remove the bearing cover from the burr set.

Kingrinder | Exterior Adjustment
Kingrinder | Exterior Adjustment

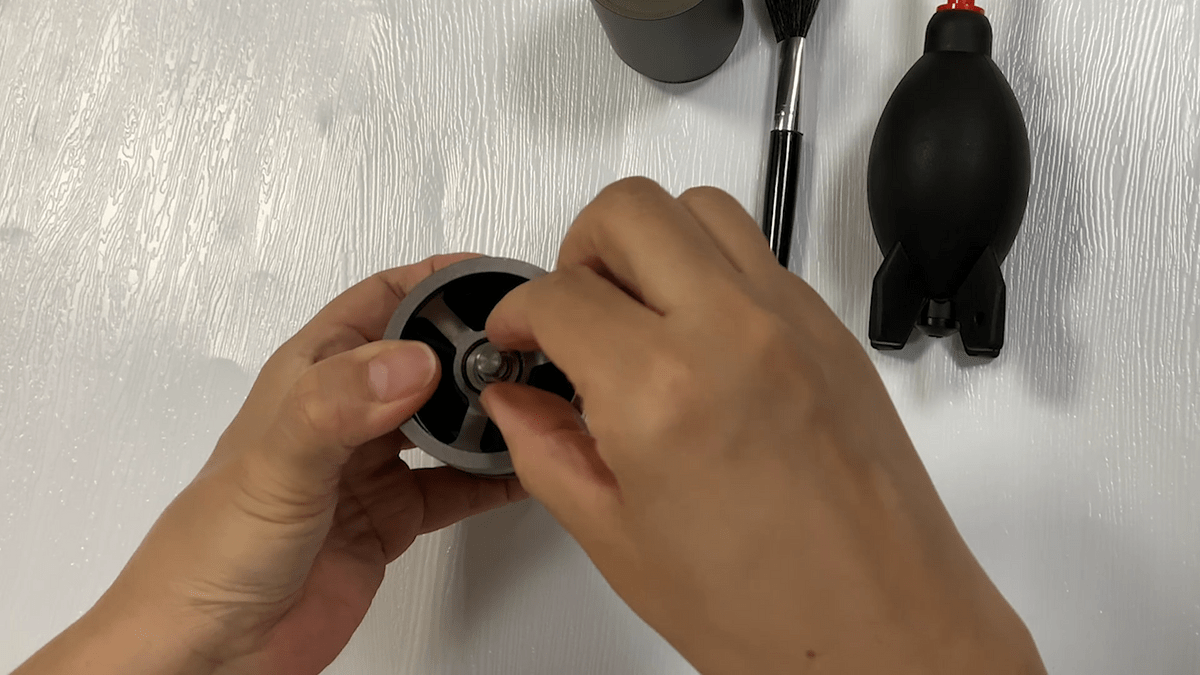

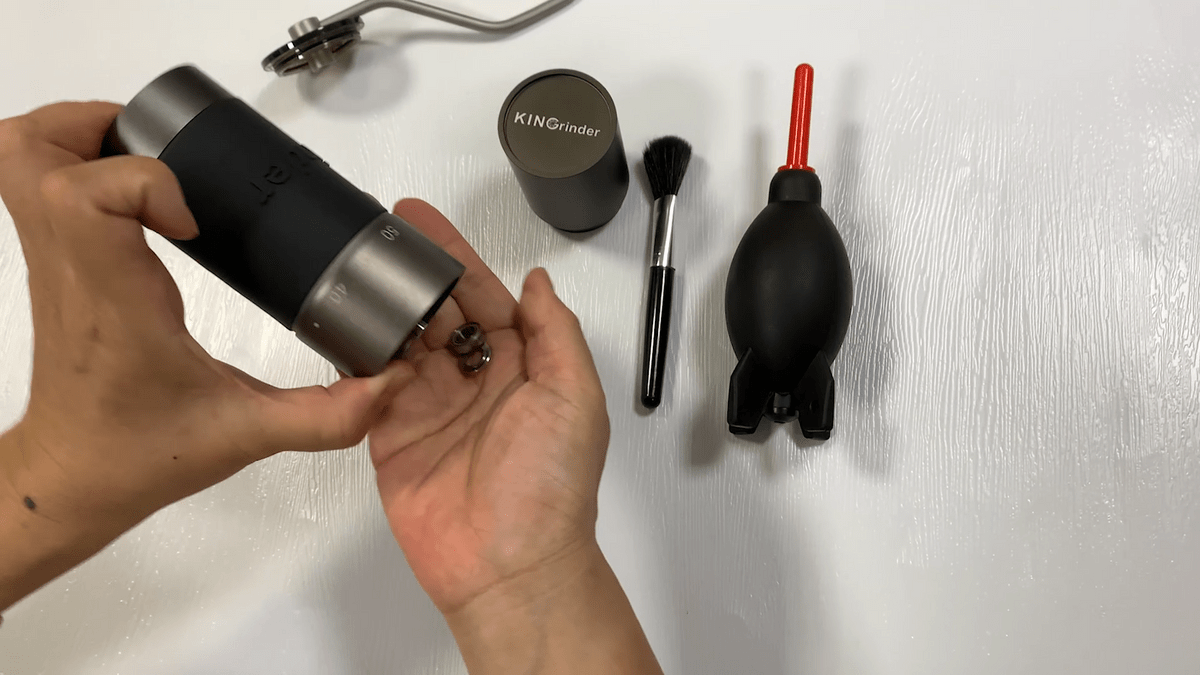

6. Take out the top bearing cover and the top bearing from the above.

Kingrinder | Exterior Adjustment

Assembling your grinder:

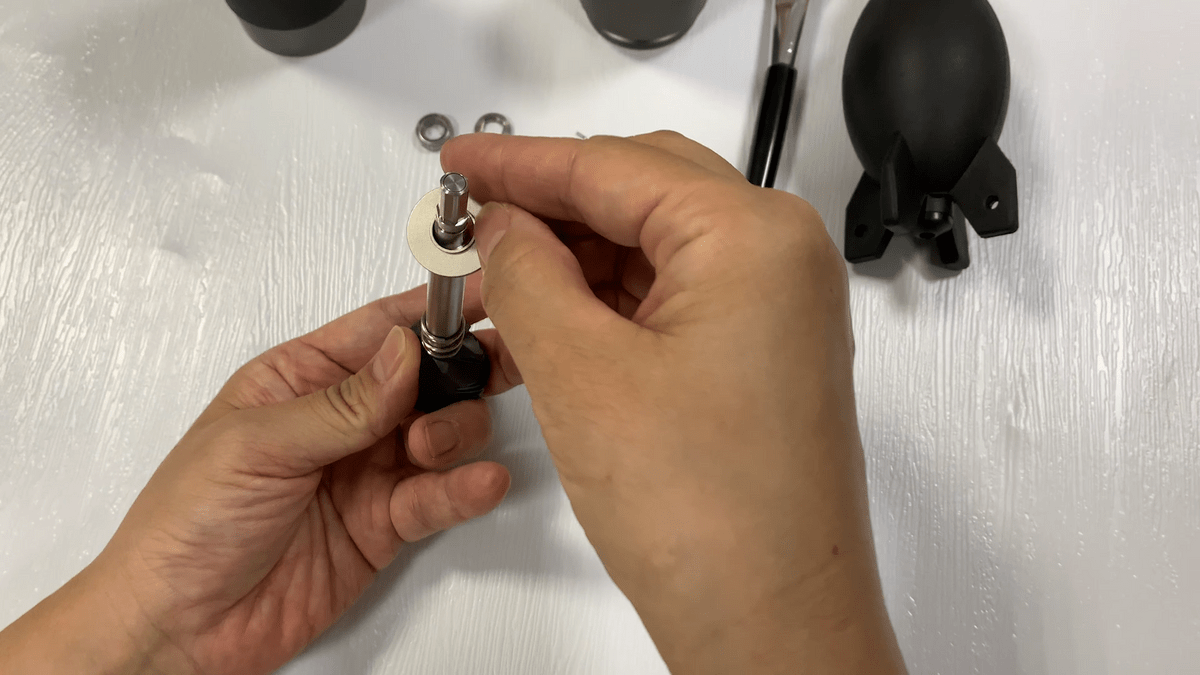

1. Put on the bearing cover on the burr set and then put the burr set back to the grinder.

Kingrinder | Exterior Adjustment
Kingrinder | Exterior Adjustment

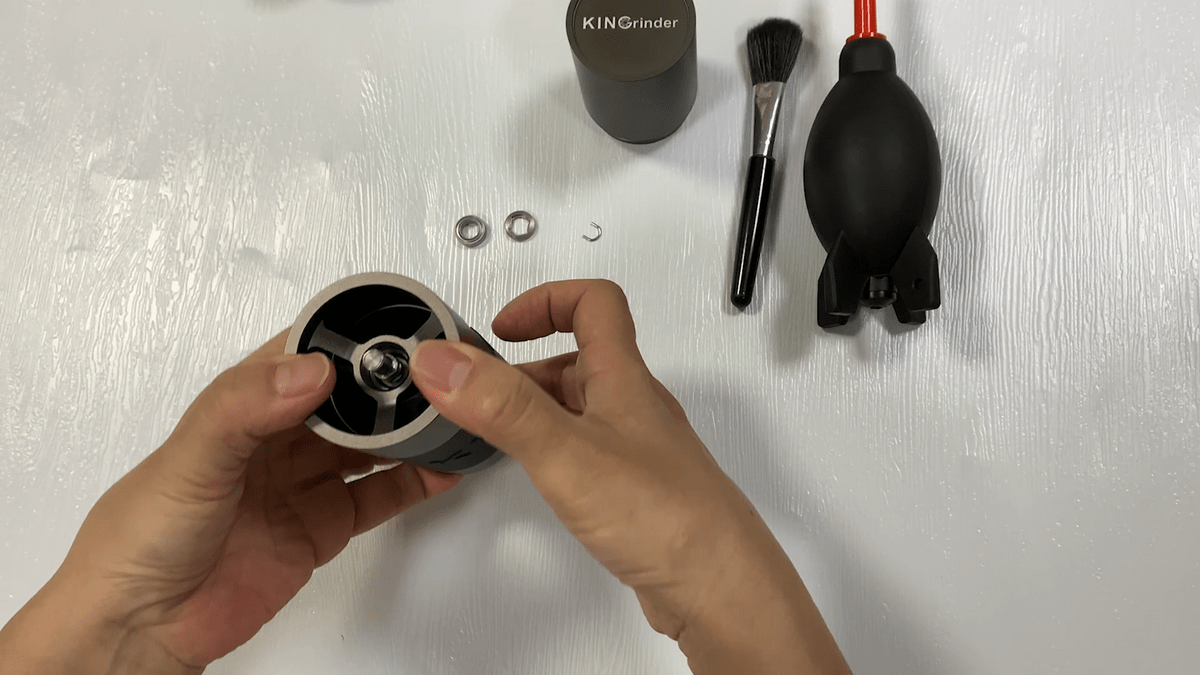

2.Hold down the burr set with a hand and put on the top bearing and the top bearing cover

Kingrinder | Exterior Adjustment

***There are two shapes of the top bearing cover: flat design and curve design. The curve design shape of the top bearing cover facing upward.***

Kingrinder | Exterior Adjustment

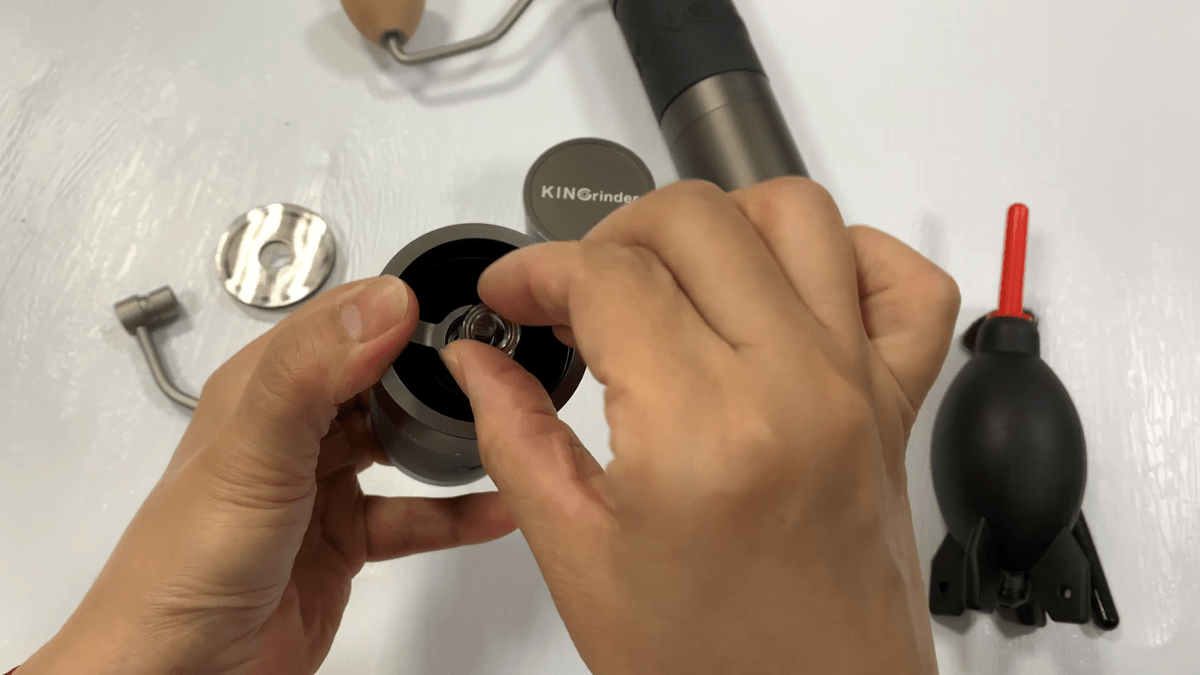

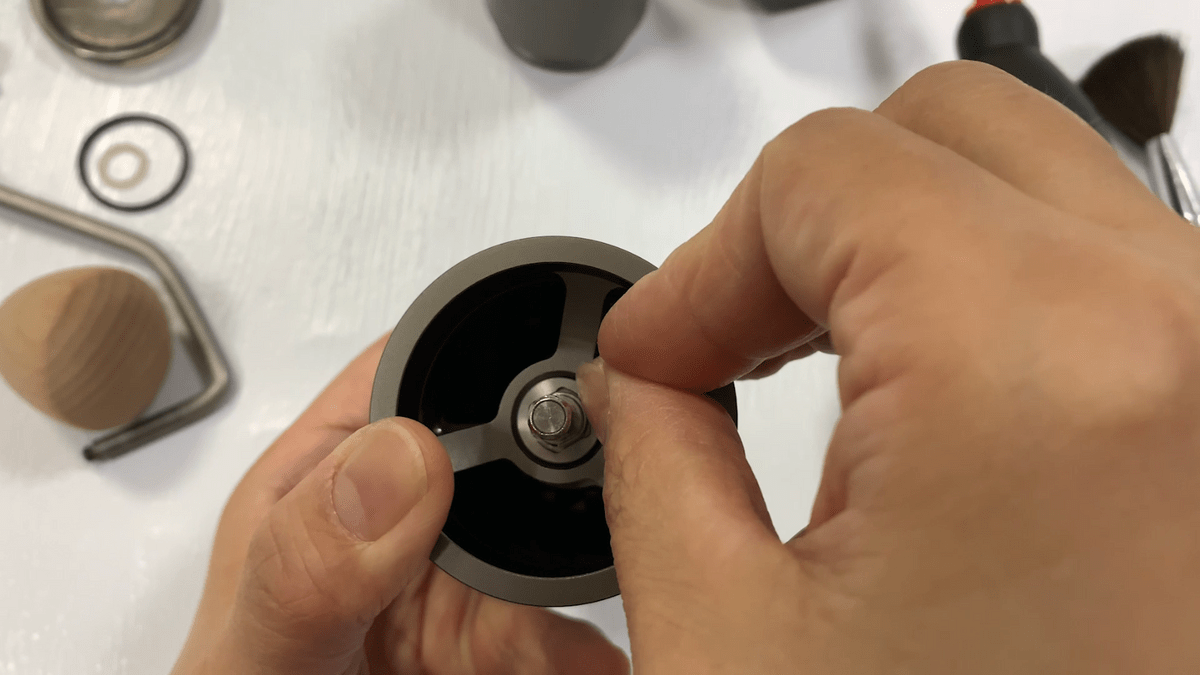

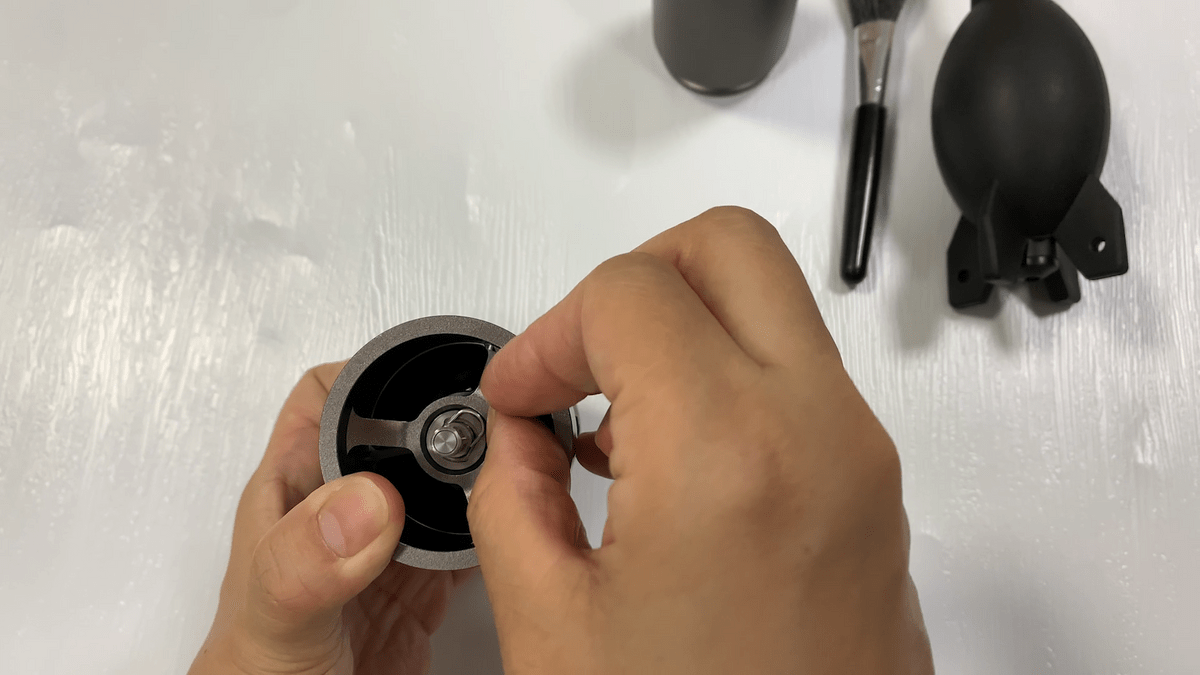

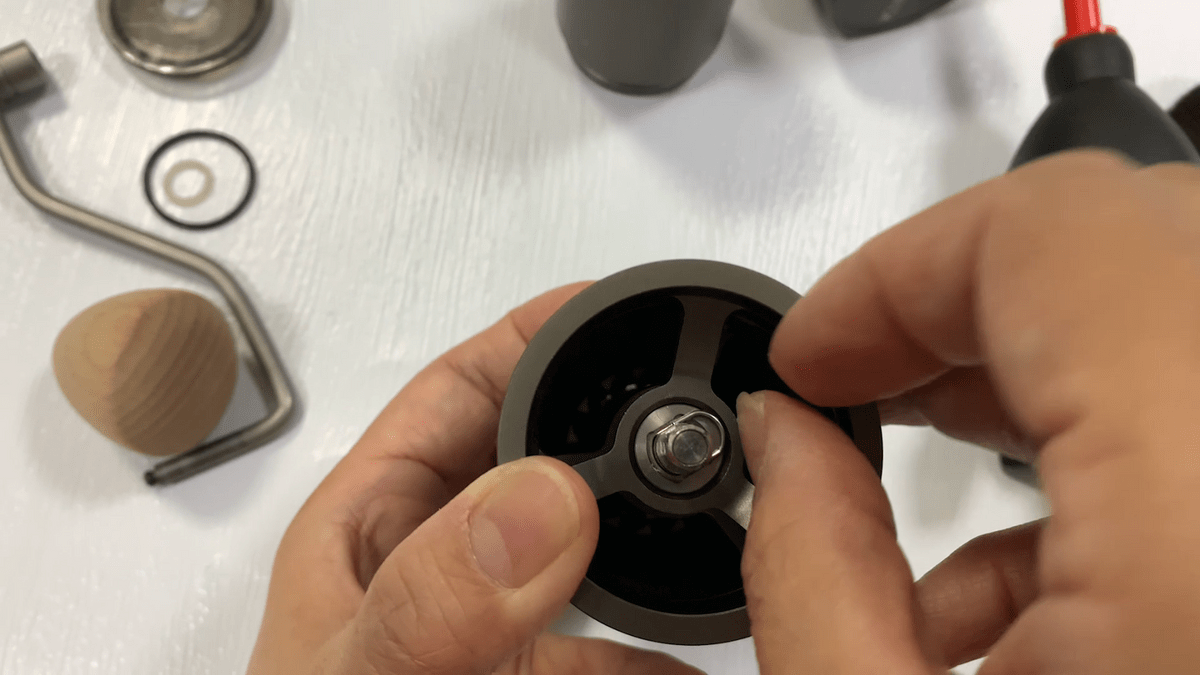

3. Slide the circlip onto the curve design shape of the top bearing cover.

Kingrinder | Exterior Adjustment
Kingrinder | Exterior Adjustment

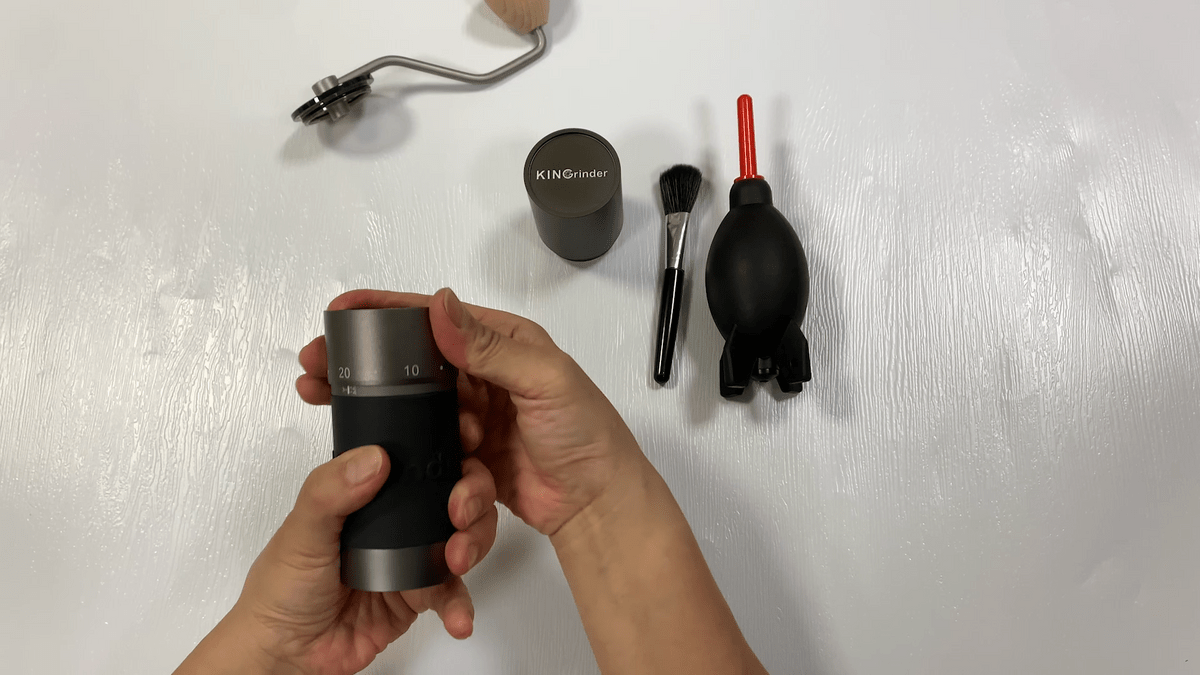

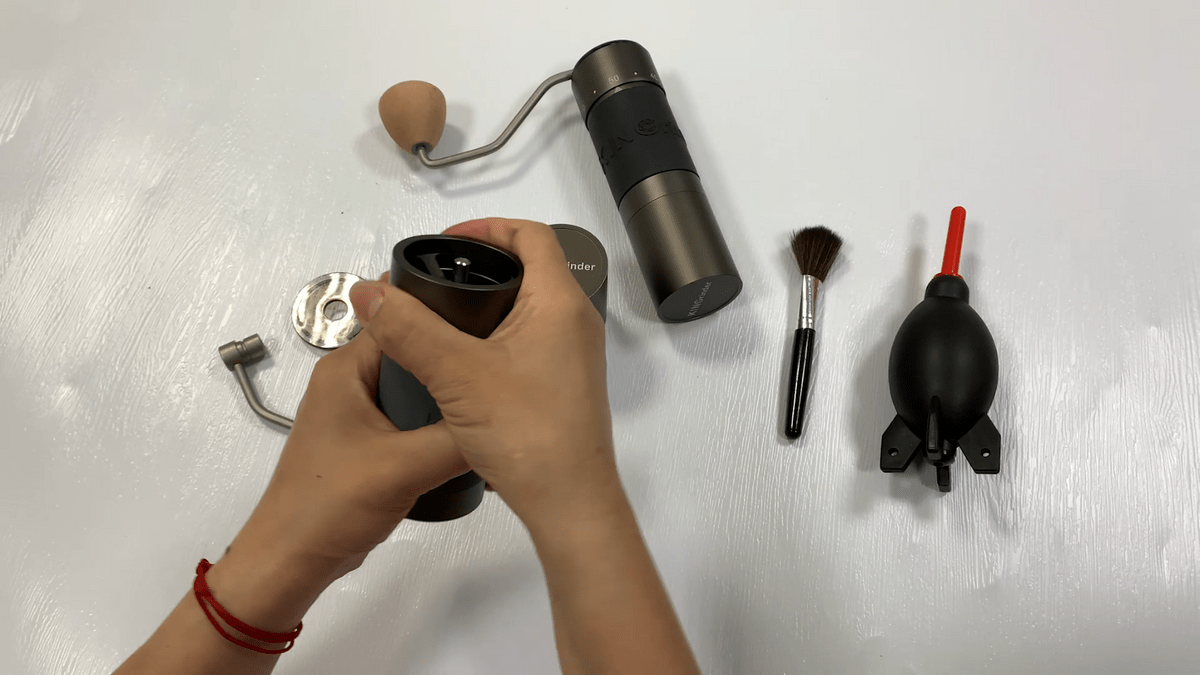

4. Rotate the adjustment nut clockwise till tightened.

Kingrinder | Exterior Adjustment

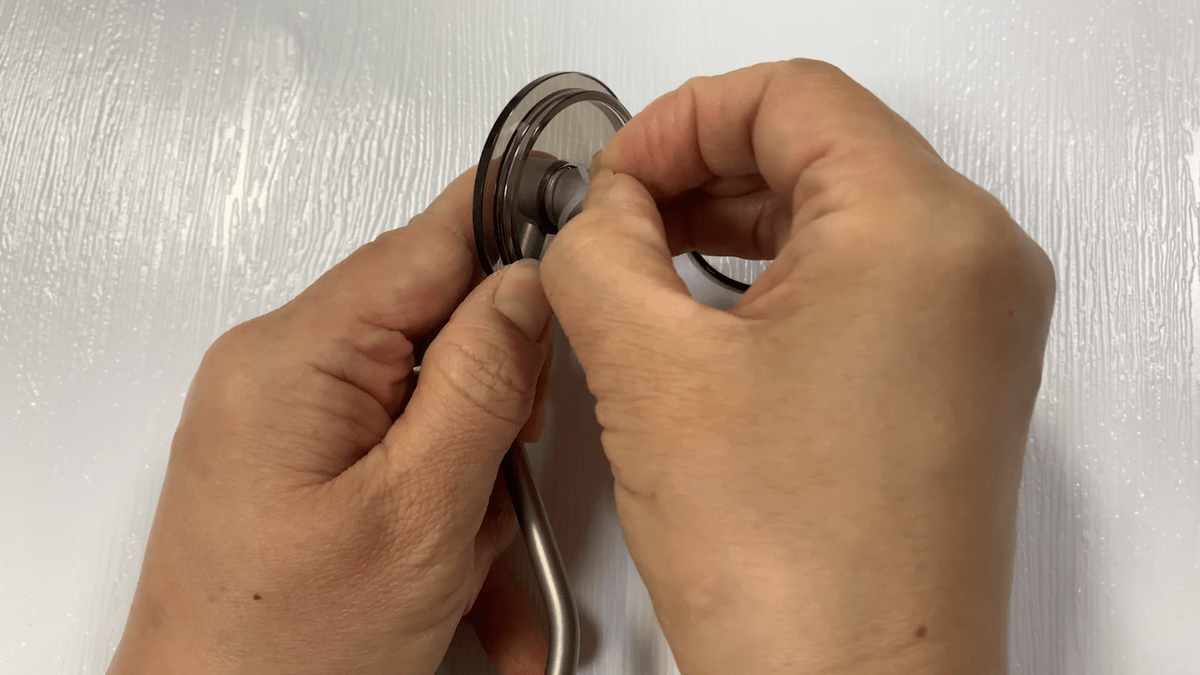

5. Put on the PC Lid, the white O-Ring, the black O-Ring and the ball into the handle

Kingrinder | Exterior Adjustment



Kingrinder | Exterior Adjustment
